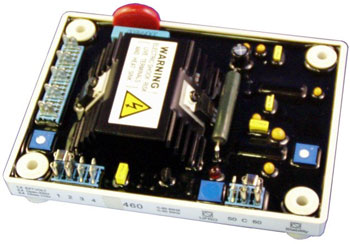

Replacement Voltage Regulator for Newage SX460, and ONAN 305-0982
Factory Direct Price: $159.00
Quantity in Basket: None
Buy with Confidence
The Model 460 Universal Regulator is an exact replacement for Newage SX 460, Onan 305-0982 and Kutai EA 460. It can also replace many obsolete, hard to get and/or expensive regulators found on older AC generators (alternators), with or without brushless exciters, up to approximately 200 KVA in size, within its field output ratings. It is easily retrofitted because of its small size and simplicity of connection using only four wires. By means of jumper-selectable voltage programming, the Model 460 covers virtually all voltages from 100 to 240 VAC, 50 or 60 Hz, on single and three phase systems.
Will work in most brushless generators that require up to 63 volts DC / 4 amps to the exciter field.
Sensing & Power Input: 95-132 VAC OR 190-264 VAC, 1 phase 2 wire (jumper selectable)
Output: Maximum 90 VDC at 207 VAC Input
Continuous Output Current: 4A
Intermittent Output Current: 10A for 10 sec.
