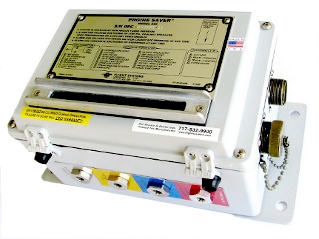

Model 550 Engine Saver

Here's What it Does...

The Engine Saver® Detects:

• Low and /or loss of coolant
• De-aeration baffle fatigue
• Broken/worn rings
• Hole in a piston
• Loss of oil
• Partially blocked oil or water pumps
• Fuel dilution
• Overspeed
• Overheating
• Clogged breathers
• Worn pump impellers
• Worn bearings
• Governor failure
• Loose radiator cap
• Scored cylinder

Here's its features...

• Built-in status panel (optional remote available) gives complete engine operating condition and fault location, even after shutdown.
• Auxiliary analog outputs for trend analysis and overhaul/maintenance forecasting via radio data link and/or on-board recording.
• SPDT heavy-duty output relay permits a wide choice of alarm/shutdown options including pre-shutdown warning.
• Trip points automatically lower when engine is idling or lugged down. All trip and enable points are fully adjustable. Enable time delay changes automatically with engine temperature.
• Unit will enable on Turbo Boost or RPM (or both) at installer's option. Choice of 3 RPM sources.
• All internal adjustments have status indicator and are marked for accurate and easy adjustment.
• Two custom optional inputs.
• Failsafe operation with flashing lights showing location
• Easy to install – complete manual supplied.
• Weather resistant and tamper proof; unit is lockable.
• 24V input - transient and reverse polarity protected, suppressors built-in to withstand nearby arc welding.
• Fully supported with spare parts, repair service and test equipment.
